SuperDeep170

Kayflow SuperDeep 170 is a super tough, high capacity gutter for use on commercial buildings, hotels, flats and any structure that has a large roof area.

At 170mm from rim to rim SuperDeep 170 has a huge reservoir and is designed to move water rapidly into and down a 100mm or 110mm down pipe.

SuperDeep 170 has an independently tested, market leading flow rate of 4.3 litres per second when set level, and 10.5 litres per second when set at 1:350.  All styles and colours of Kayflow gutters are BS Kitemarked.

 Kayflow gutter systems carry a 10 Year Guarantee for the black & grey profiles - see our T&C's for more details.  You can register your guarantee here.

Product Colours : bl.png  Black   gy.pngGrey



For more technical details download Kayflow Systems Guide    Need a Stockist? Call us on 01827 317269



SuperDeep170 Leaflet           SuperDeep170 Case study

Technical Details
HeightWidthFlow RateArea Drained
108mm 170mm 4.3 l/s 205m2
Part No. Description Pack Qty Colour
thumb-1 KCG4* Gutter (4m) 4
thumb-1 KCA1* 90º External Angle 1
thumb-1 KCA2* 90º Internal Angle 1
thumb-1 KCE1* External Stopend 1
thumb-1 KCE2* Internal Stopend 1
thumb-1 KCK1* Fascia Bracket 1
thumb-1 KCO1* Running Outlet 1
thumb-1 KCU1* Union 1

* Add suffix as follows for colours:

 BL=Black, GY= Grey

Part No. Description Pack Qty Colour
thumb-1 S1* 110mm Pipe (Single Socket) 1
thumb-1 S22* Pipe Clip 1
thumb-1 S4* 45º Bend (Double Socket) 1
thumb-1 S8* 45º Bend (Single Socket) 1
thumb-1 S15* 45º Branch (Double Socket) 1
thumb-1 S13* 45º Branch (Triple Socket) 1
thumb-1 S16* Coupler 1
thumb-1 KCH1* Hopper 1
thumb-1 S26 Shoe 1


Underground Drainage







110mm 160mm

Inspection Chambers

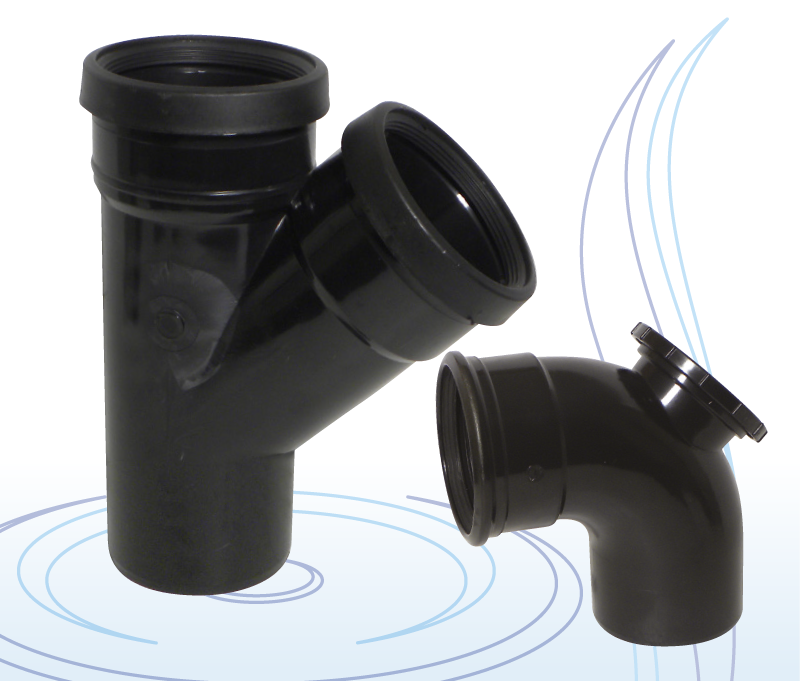

Soil & Waste Systems
